DESCRIPTION
2/24

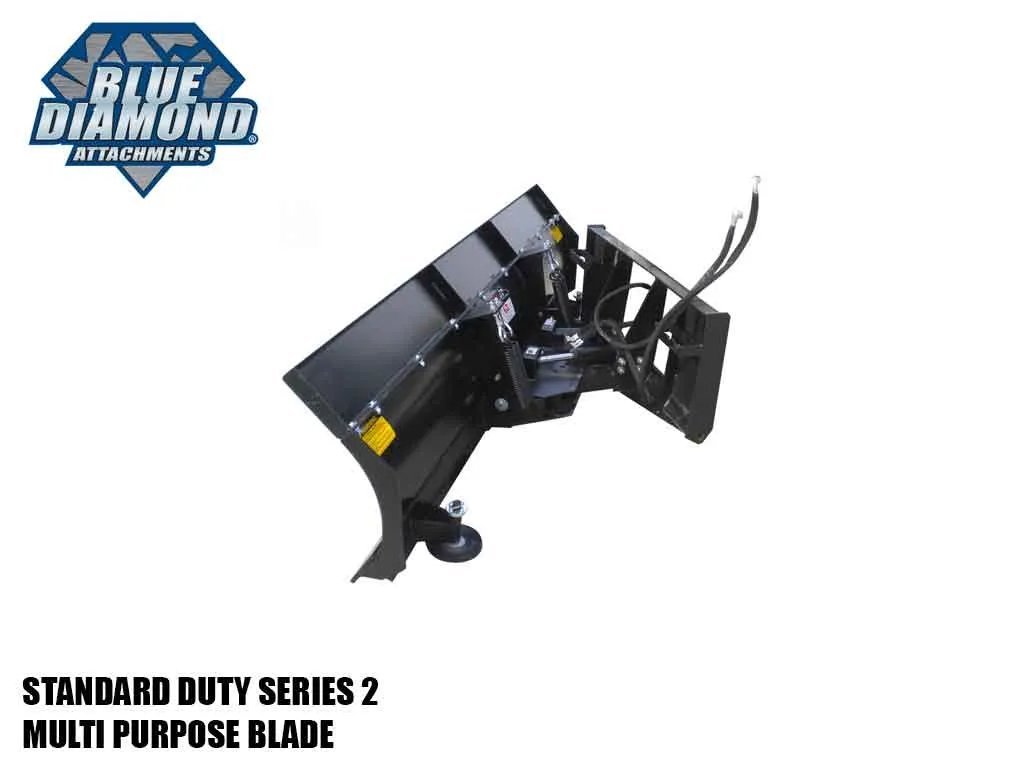

STANDARD DUTY SERIES 2 MULTI-PURPOSE BLADE
The Blue Diamond Standard Duty Series 2 Multi-Purpose blade is great for snow and light dirt work. At 22” tall, this blade is a great fit for most users and has an optional 8” height extension that can be bolted on for high-volume applications. The curved back keeps the material rolling for maximum efficiency. Adjustable skid shoes allow the cutting edge to land perfectly every time. The full-trip mouldboard protects the operator and equipment from hidden obstacles or curbs. These blades have a trip-lockout pin that can be installed when using the blade for dirt applications.
FEATURES INCLUDE:
- Available in 72” and 84” widths
- 22″ Blade height
- Optional bolt-on 8″ height extension
- Full-Trip moldboard
- Steel cutting edge
- Hydraulic angle

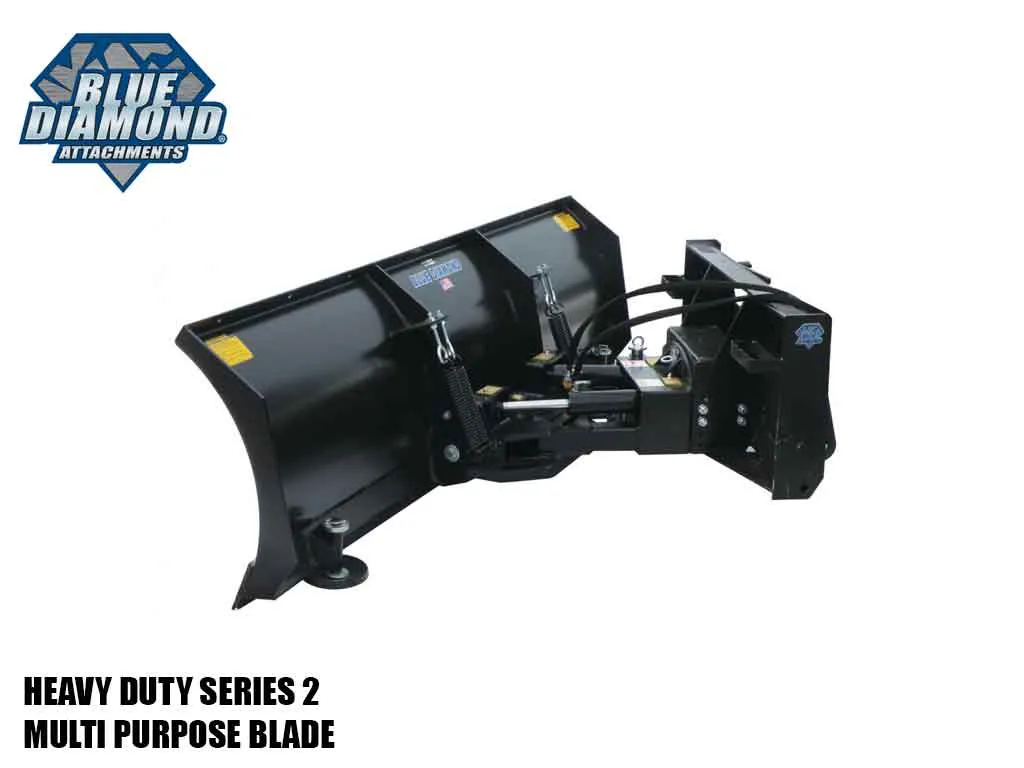

HEAVY DUTY SERIES 2 MULTI-PURPOSE BLADE
The Blue Diamond Heavy Duty Series 2 Multi-Purpose blade is designed for commercial contractors. At 28” tall,
this blade is purpose-built for large applications and has an optional 8” height extension that can be bolted on for
even more capacity. The curved back keeps the material rolling for maximum efficiency. Adjustable skid shoes
allow the cutting edge to land perfectly every time. The full-trip mouldboard protects the operator and equipment
from hidden obstacles or curbs. These blades have a trip-lockout pin that can be installed when using the blade
for dirt applications.
FEATURES INCLUDE:
• Available in 84”, 96”, 108”, and 120” widths
• 28” blade height
• Optional bolt-on 8” height extension
• Full-trip moldboard
• Steel cutting edge
• Hydraulic angle
SPECIFICATIONS
PART # | SIZE | HEIGHT | ANGLED WIDTH | WEIGHT |
123405 | 48" STANDARD | 22" | 48" - 42" | 318 lbs |
123410 | 60" STANDARD | 22" | 60" - 53" | 405 lbs |
123415 | 72" STANDARD | 22" | 62 1/4" | 590 lbs |
123420 | 84" STANDARD | 22" | 72 1/2" | 900 lbs |
123470 | 84" HEAVY DUTY | - | 72.5" | 901 lbs |
123475 | 96" HEAVY DUTY | - | 83" | 946 lbs |
123480 | 108" HEAVY DUTY | - | 93" | 986 lbs |
123485 | 120" HEAVY DURY | - | 104" | 1,016 lbs |
